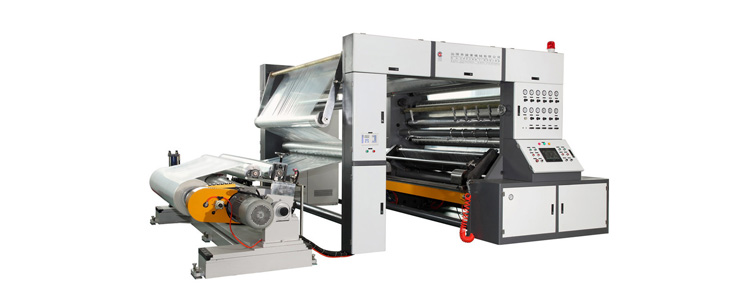

CYDQ-L Gantry Type Film Slitter Machine (Model:2400-3600mm)

CYFQ-L gantry type film slitter machine is suitable for slitting and rewinding the POF, BOPP,CPP film. 2.The rewinder is controlled by servo motor system and tension on line.The unwinding tension adopts vector inverter to control the speed and AC motor with encoder to feedback the speed. 3.The unwinder and auto corrector are controlled by hydraulic system which is convenient in control and high precision.

Machine Description

1.CYFQ-L gantry type film slitter machine is suitable for slitting and rewinding the POF, BOPP,CPP film.

2.The rewinder is controlled by servo motor system and tension on line.The unwinding tension adopts vector inverter to control the speed and AC motor with encoder to feedback the speed.

3.The unwinder and auto corrector are controlled by hydraulic system which is convenient in control and high precision.


Model CYFQ-2400
Max width of raw material 2300mm
Max diameter of raw material 800mm
Slitting width of product 150-2300mm
Max slitting diameter of product 600mm
Rewinding width of product 800-23 00mm
Line speed 450m/min
Roller net length 2400mm
Film thickness 10 mic-50 mic
Size(L x W x H) 6000x3 800x2200mm
Total weight 16T

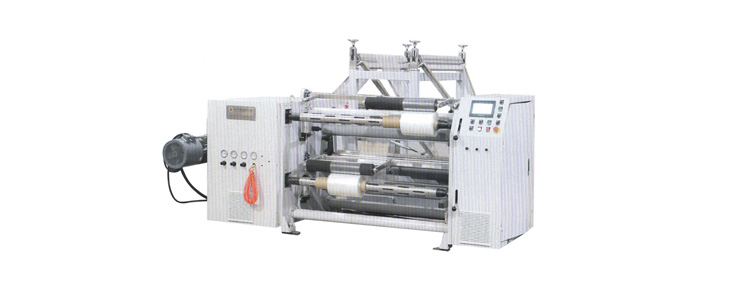

CYDZ-L High Speed Film Folding Machine (Model:1300-1800mm)

CYDZ-L high speed film folding machine is suitable for folding the POF,BOPP andCPP film. 2.The unwinding tension adopts vector inverter to control the speed and AC motor with encoder to feedback the speed.The center rewinder system is controlled motor with double station,it can folding the film both single or double pieces in one time.

Machine Description

1.CYDZ-L high speed film folding machine is suitable for folding the POF,BOPP andCPP film.

2.The unwinding tension adopts vector inverter to control the speed and AC motor with encoder to feedback the speed.The center rewinder system is controlled motor with double station,it can folding the film both single or double pieces in one time.

Mode CYDZ-1300 CYDZ-1700
Max width of raw material 1250mm 1650mm
Max diameter of raw material 600mm 600mm
Folding width of product 620mm 820mm
Folding width of product 620mm 820mm
Line speed 450m/min 450m/min
Roller net length 1300mm 1700mm
Film thickness 10 U m-50 U m 10 U m-50 U m
Size(LxWxH) 3000x2800x1500mm 3400x3200x1750mm
Total weight 6T 7T
